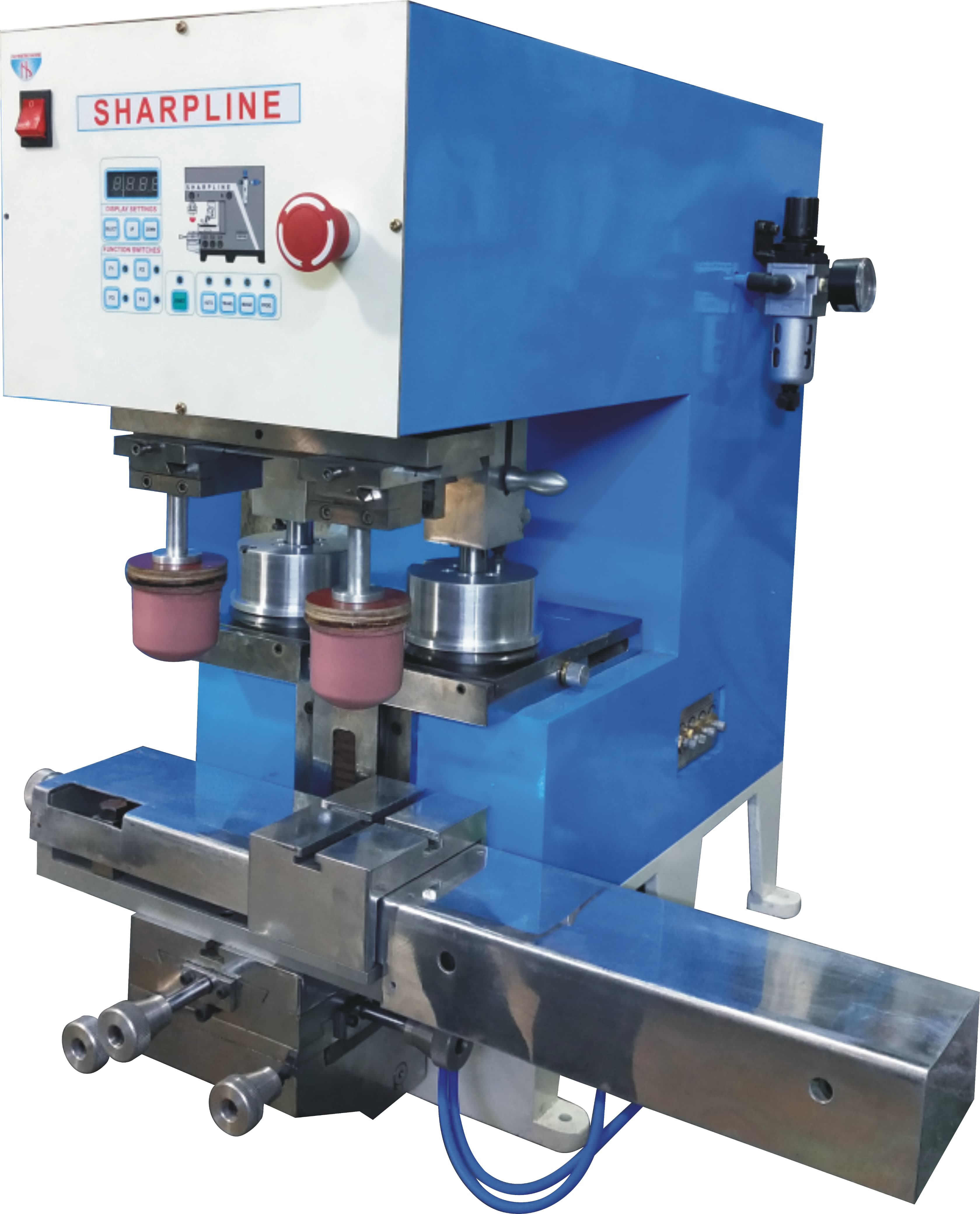

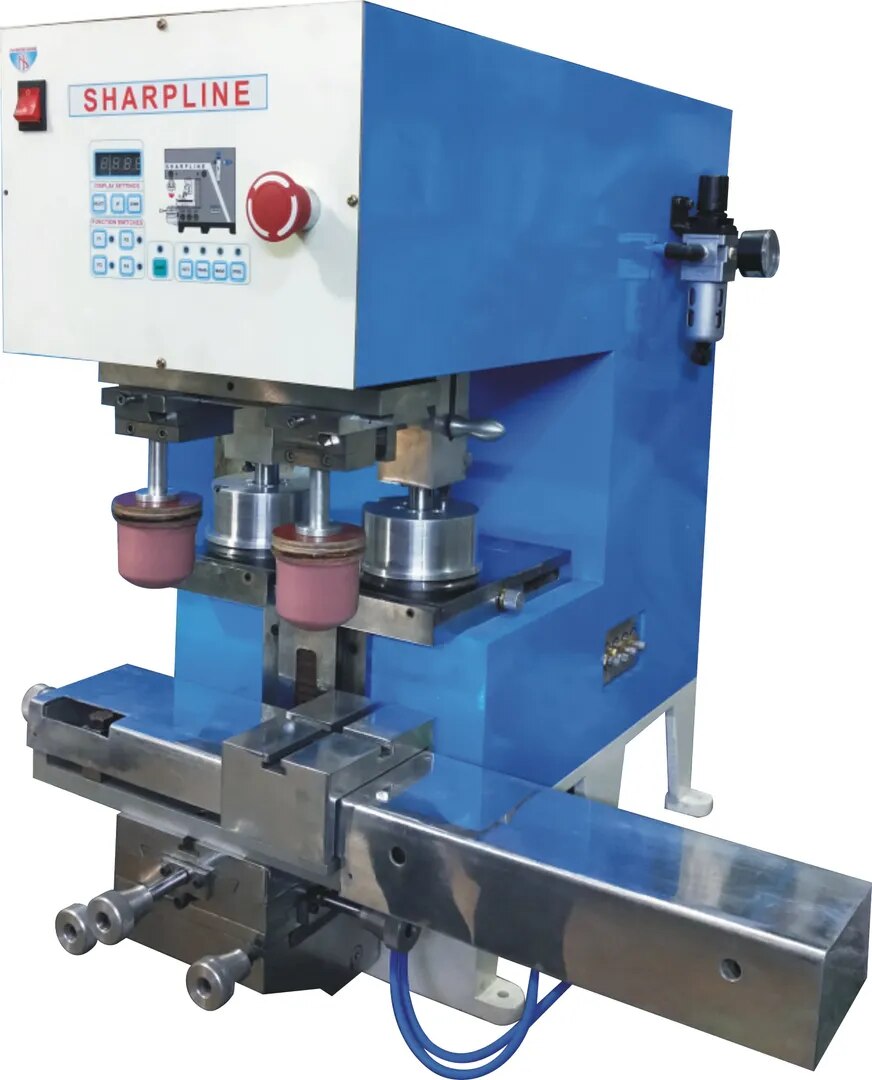

Double Color close ink cup pad Printing Machine

DOUBLE COLOR CLOSE INK CUP PAD PRINTING

Get in touch with us for obtaining high quality Double Color Close Ink Cup Pad Printing as we are a dependable supplier in the town. Owing to our flawless transit system, we are capable of delivering the orders within the promised time frame. We have hired a team of professional quality experts to carry out diverse quality tests in order to ensure zero defects at buyer's end. As we are recognized as a dependable name in Delhi, Delhi, India, we are capable of reaching any nook and corner with ease.

Product Details:

Cliché Size 100*210*10mm

Printing Image Max. 85 Mm Dia

Printing Capacity Max. 2,000 Stroke/hr

Height Of Object Max. 100 Mm

Tampon Stroke Max. Tampon Stroke Max.

Force Of Pressure Max. 580 N

Setting Micro Process Push Button And Mode Select Option

Control Electro- Pneumatic

Control Voltage 24 V DC

Electric Supply 220 V, 50Hz

Current Consumption 15 W

Drive Pneumatic

Pneumatic Connection Working Pressure 5-6 Bar Nominal Width 6 Mm.

Air Consumption Max. 5 CFM

Dimensions (L*H*W) 615*705*400 Mm

Weight 110 Kg

X&Y Table Easy Adjustment And Micro Setting For Accuracy

Pad Holder Adjustable Pad Holder With X&y Position

INK Cup Non Magnetic Tungstun Steel Ring Ink Cup

Foot Padel For Manual Operating Of Machine Process
