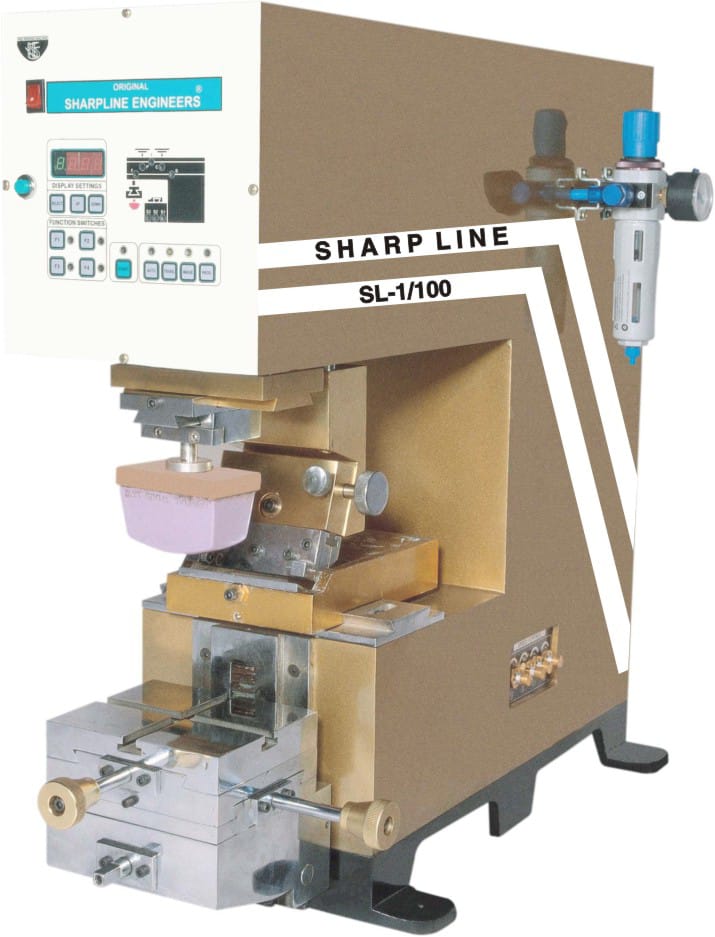

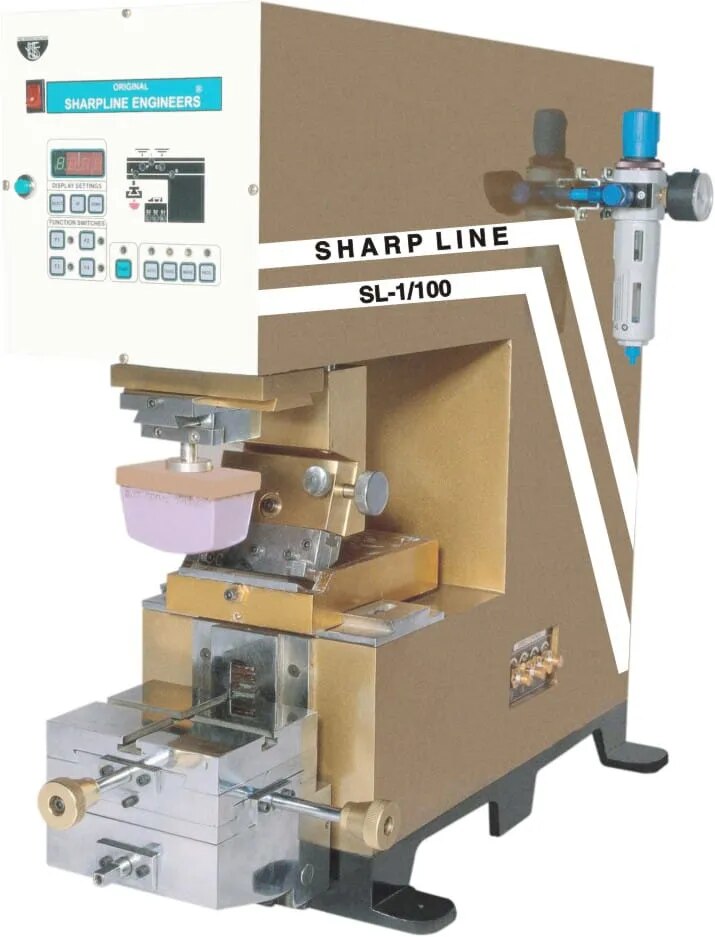

SINGLE COLOR OPEN INK WELL PAD PRINTING MACHINE

SINGLE COLOR OPEN INK WELL PAD PRINTING MACHINE

As we are the name on which the customers lay their trust for quality, as we are supplying the finest Single color open ink well pad printing machine. We are backed by the most sophisticated transit system, thus buyers can stay rest assured for timely delivery of the orders. To make sure that we offer only defect-free range of products, our quality experts cross check every product at diverse stages. We are a recognized name catering to the customers by offering different products from Delhi, Delhi, India.

Product Details:

Cliché Size 100*100*10mm

Printing Image Max 75 Mm

Printing Capacity Max 2,500 Stroke/hr

Height Of Object Max. 100 Mm

Tampon Stroke Max 100 Mm

Force Of Pressure Max 580 N

Setting Micro Process Push Button And Mode Select Option

Control Electro- Pneumatic

Control Voltage 24 V DC

Electric Supply 220 V, 50Hz

Current Consumption 15 W

Drive Pneumatic

Pneumatic Connection Working Pressure 5-6 Bar Nominal Width 6 Mm.

Air Consumption Max. 4 CFM

Dimensions (L*H*W) 615*620*300 Mm

Weight 85 Kg

X&Y Table Easy Adjustment And Micro Setting For Accuracy

Pad Holder Adjustable Pad Holder With X&y Position

INK Tray Ink Tray For Easy Handling And Cleaning

Foot Padel For Manual Operating Of Machine Process
