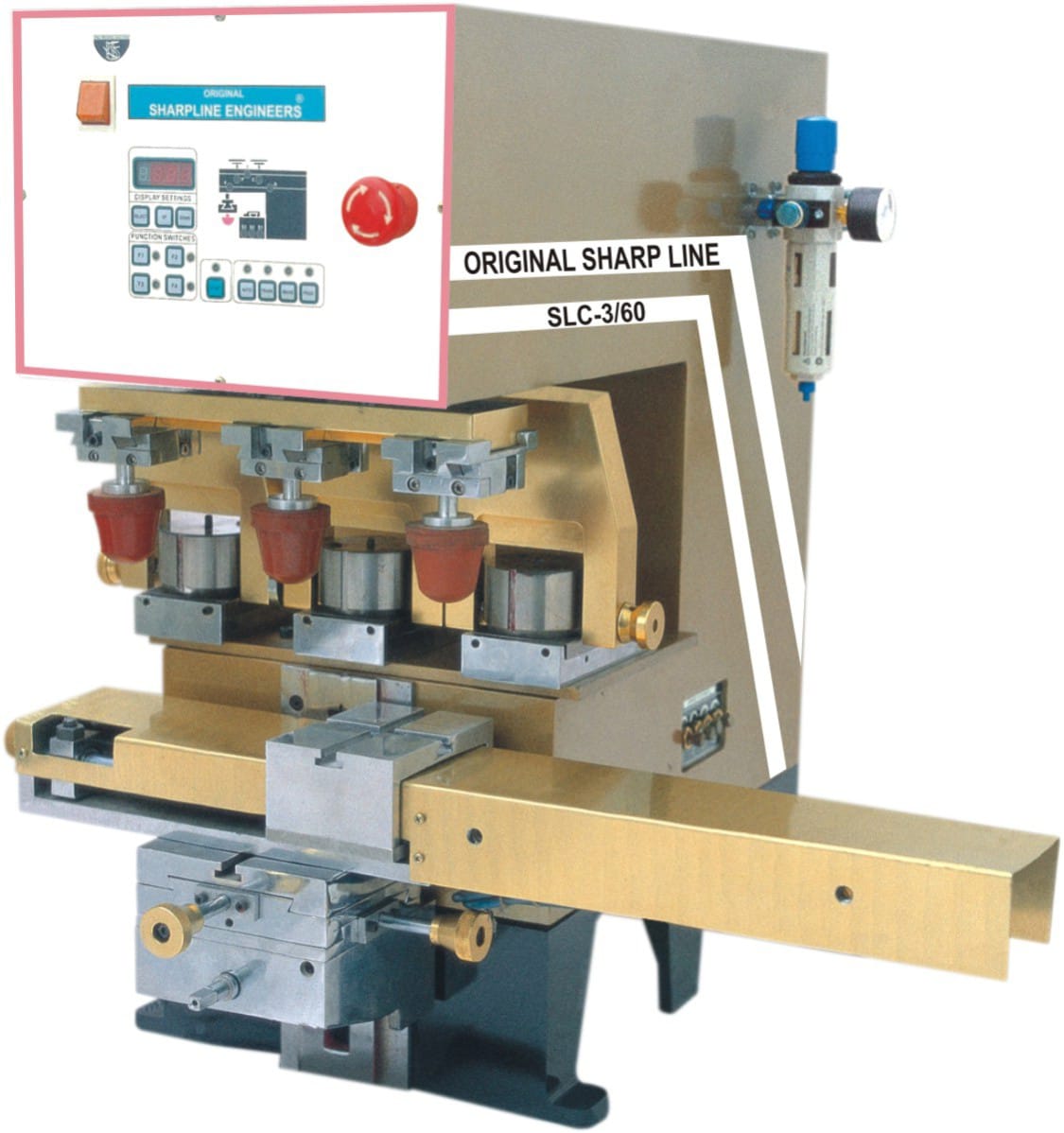

THREE COLOR CLOSE INK CUP PAD PRINTING MACHINE
Keeping in consideration the latest standards, we are involved in supplying only high quality Three Color Close Ink Cup Pad Printing Machine at reasonable prices. Buyers can rely on us for on-time and safe delivery as we are aided by modern transit facilities. The company is backed by a quality control wing that includes skilled quality inspectors who strictly check all the products before delivery. Located in Delhi, Delhi, India, the company has gained immense prominence in the domestic market owing to its fair pricing policy and professionalism.
Product Details:
Cliché Size 100*210*10mm
Printing Image Max 85 Mm Dia
Printing Capacity Max 1,400 Stroke/hr
Height Of Object Max 100 Mm
Tampon Stroke Max 100 Mm
Force Of Pressure Max 580 N
Setting Micro Process Push Button And Mode Select Option
Control Electro- Pneumatic
Control Voltage 24 V DC
Electric Supply 220 V, 50Hz
Current Consumption 15 W
Drive Pneumatic
Pneumatic Connection Working Pressure 5-6 Bar Nominal Width 6 Mm.
Air Consumption Max 6 CFM
Dimensions (L*H*W) 615*705*450 Mm
Weight 130 Kg
X&Y Table Easy Adjustment And Micro Setting For Accuracy
Pad Holder Adjustable Pad Holder With X&y Position
INK Cup Non Magnetic Tungstun Steel Ring Ink Cup
Foot Padel For Manual Operating Of Machine Process
SINGLE PAD PRINTING MACHINE
Single color, Non-Magnetic Tungsten carbide steel ring & compact sealed Ink cup Pad Printing machine Max. Print area 75 mm dia High Output 25-2700/hr 100% picture-perfect registration & precision maintained in repeat jobs. Adaptable for inline automation. X Y Table for easy product micro setting with design reference.
Product Details:
Minimum Order 1
Type Electro Pneumatic Pad Printing Machine
Weight 100-500kg
Color Black
Voltage 220V
Condition New
Gross Power 1-5kw
Warranty 1 Year
SPECIAL PURPOSE PAD PRINTING MACHINE
Our organization is avidly engaged in supplying an exclusive range of Plasto Special Purpose Pad Printing Machine at reasonable prices. Delivering the orders on time is one of our specialties for which we are highly admired by the clients. We are known for providing a qualitative array of products and thus our entire range is strictly checked against varied quality parameters. Deeply rooted in Delhi, Delhi, India, we are indulged in the process of providing products to any required destination with ease.
